The 8P8C telephone jack is a small connector with a surprisingly important role in modern communication and networking. Many people casually refer to it as an “RJ45” connector, but in precise technical terms, the correct physical description is 8P8C, which stands for “8 Position, 8 Contact.” This means the jack has eight discrete locations (positions) and each of those positions is populated with a metal contact. While it is widely used for Ethernet networking, it can also be used in certain telephone applications, which is why some people call it an 8P8C telephone jack.

Understanding what an 8P8C telephone jack is, how it is constructed, and how it is used can help you properly wire and troubleshoot both voice and data connections. It is more than just a small piece of plastic; it is a standardized connector that helps ensure reliable connectivity across many different types of equipment.

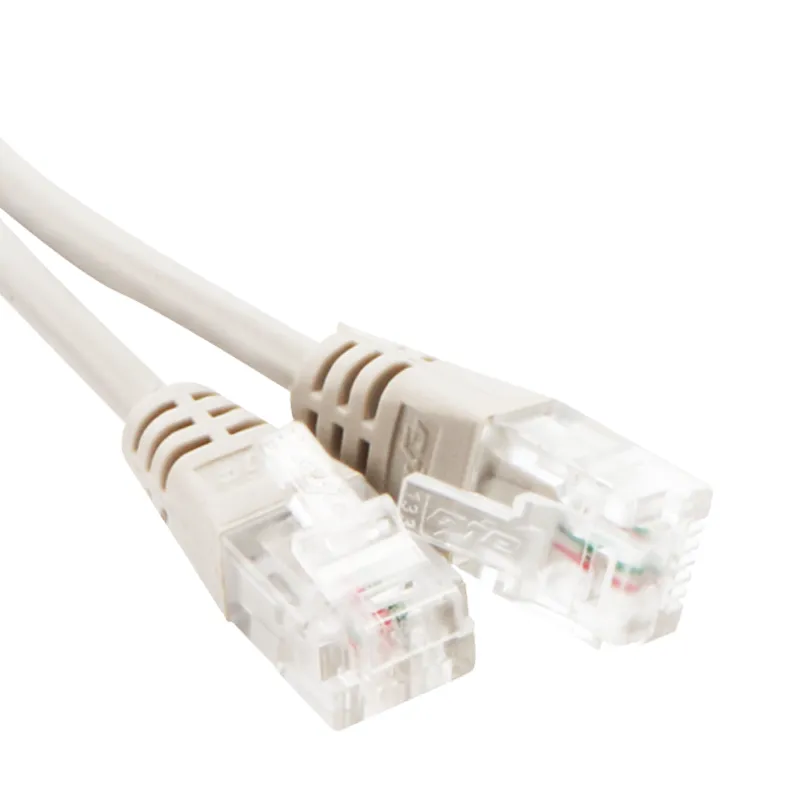

At a basic level, the 8P8C telephone jack is a modular connector used to terminate twisted-pair cables. These cables typically contain four pairs of wires, making eight conductors in total. Each conductor corresponds to one of the eight contacts in the 8P8C connector. The jack is usually mounted in a wall plate, surface-mount box, patch panel, or keystone frame. The plug, which is the male counterpart, is attached to the cable and is inserted into the jack to complete the physical connection.

The form factor of the 8P8C telephone jack follows a long-established modular design. The latch on the plug and the matching recess on the jack help to prevent accidental disconnection. When the plug is inserted, the contacts on the plug align with the spring contacts inside the jack, ensuring an electrically solid interface. This consistent geometry is what allows cables and equipment from different sources to interconnect reliably.

In structured cabling systems, the 8P8C telephone jack is often used both for data (Ethernet) and for voice (telephone) connections. Structuring a building so that each outlet can be used flexibly requires a common connector type, and 8P8C fits that role. In many modern installations, the same outlet can provide network connectivity for computers or carry analog or digital voice signals to a telephone, simply by changing how the jack is wired and what it is connected to in the wiring closet.

The wiring inside the 8P8C telephone jack follows standardized pinouts, most commonly T568A or T568B. These standards define which color-coded wire in the cable connects to which pin of the jack. Adhering to a single standard throughout a building is crucial; mixing standards at different ends of the same cable leads to crossed pairs and unreliable performance. For pure telephone usage, sometimes only one or two pairs are used, but in many cases all four pairs are still terminated so that the same outlet can support future upgrades.

When used as an 8P8C telephone jack for voice applications, the center pair (pins 4 and 5) often carries the primary telephone line, reflecting old conventions where the central pair was designated as line 1. Additional pairs can support multiple telephone lines over the same cable, which is especially useful in office environments where a single physical outlet might need to support several extensions or services. Even though the connector is physically the same as the one used for Ethernet, the signaling and voltages for telephone service are quite different from those of data networking.

The physical reliability of an 8P8C telephone jack depends on correct termination. The most common method for terminating the jack to the cable is insulation displacement connection (IDC). In this technique, each conductor is pressed into a slot that cuts through the wire’s insulation and forms a gas-tight electrical connection. Tools such as punch-down tools are used to press the wires into the slots. If the technician follows the color codes and ensures that pairs are kept twisted as close to the termination point as possible, the resulting connection will be electrically sound and resistant to interference.

One important detail in using an 8P8C telephone jack is maintaining cable performance. Although many telephone services function reliably even on lower category cables, professional installations often use higher-category cabling to allow for future upgrades. Since 8P8C connectors are commonly associated with higher-speed data networks, they are designed to support frequencies suitable for fast communication. When the same jack is used purely for telephone purposes, it is often over-specified for the job, which is not a problem but can be seen as a form of future-proofing.

Because the 8P8C telephone jack is so widespread, it has effectively become the default connector for many low-voltage communication systems. In some small office or home setups, voice over IP telephones plug directly into a network outlet, making voice and data fully convergent on the same type of connector. In other, more traditional systems, analog telephones are connected through an 8P8C telephone jack that is wired back to a distribution block or private branch exchange. In both scenarios, the same physical 8P8C form factor is used.

Despite its versatility, the 8P8C telephone jack is not without limitations. Frequent plugging and unplugging can wear down the contacts, and improper tension on the cable can stress the connection point. Strain relief practices, such as proper cable management and avoiding sharp bends near the termination point, help preserve the integrity of the jack. When mounted in a wall plate, the jack should be firmly secured so that inserting or removing a plug does not cause the entire assembly to move, which could loosen the terminations over time.

Another aspect to consider is compatibility. Many people believe that any phone can plug into any 8P8C telephone jack and function correctly, but in reality, the internal wiring must match the expectations of the device. For example, a traditional analog telephone might expect the line to be on the center pair, while certain specialized voice equipment might be wired differently. Before reusing existing cabling for a new purpose, it is wise to verify both the wiring scheme and the requirements of the equipment that will be connected to the 8P8C telephone jack.

In mixed-use environments, labeling is important. Since an outlet with an 8P8C telephone jack can carry either network data or voice signals, labeling the port helps prevent accidental misconnection. Plugging a network device into a port that is carrying a plain old telephone service signal is usually not catastrophic, but it is not advisable. Good labeling and documentation help technicians and users identify which outlets are intended for which services.

From an installation standpoint, planning the location and number of 8P8C telephone jacks is a key part of structured cabling design. In offices, it is common to install at least two outlets per workstation area, allowing flexibility in arranging phones, computers, and other devices. In homes, these jacks are often placed in living areas, offices, and bedrooms, providing a consistent interface for network access and telephone service. The uniformity of using an 8P8C telephone jack at every outlet helps simplify both installation and future upgrades.

Over the years, the role of the 8P8C telephone jack has evolved. Originally, many telephone systems used smaller connectors with fewer positions, but as data networking became widespread, it was more practical to standardize on a single connector capable of handling both voice and data. Now, this connector is part of everyday life, present on network switches, home routers, wall outlets, and many other devices. Even though it is commonly associated with data networks, its use for telephone connections remains significant, especially in hybrid environments where analog and digital voice coexist.

Technically, the distinction between an “8P8C telephone jack” and an “Ethernet jack” is not physical but functional. The hardware is the same; what changes is the wiring pattern and the type of signal carried over the cable. This dual identity can cause confusion in terminology, but once you understand that 8P8C simply describes the mechanical and electrical interface, it becomes easier to see how the same connector can support multiple services.

In terms of safety and standards, installations involving an 8P8C telephone jack should follow established cabling and electrical guidelines. Low-voltage communication cabling is generally safer than mains power wiring, but it still requires attention to separation from power lines, proper grounding in some systems, and avoidance of moisture or mechanical damage. When properly installed, these jacks provide long-lasting, reliable connectivity with very little maintenance.

In summary, the 8P8C telephone jack is a highly standardized, versatile connector that underpins both traditional telephone systems and modern networked communication. Its eight positions and eight contacts allow it to support multiple pairs of wires, carrying either voice, data, or both in a structured cabling environment. By understanding how the 8P8C telephone jack is wired, installed, and used, one can design and maintain communication systems that are flexible, reliable, and ready for future expansion. Whether mounted in a wall plate in a home office or lined up in rows on a patch panel in a large facility, this modest connector remains a central component of contemporary connectivity.
