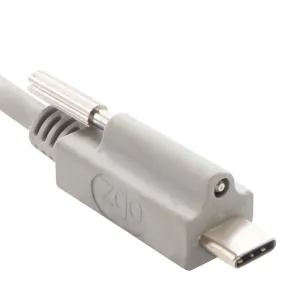

TYPE-C with core pulling outer mold technology is becoming increasingly important in the precision connector and consumer electronics industry. As devices get thinner, faster, and more power‑hungry, the structural design of the connector and the optimization of the mold become critical. The phrase “TYPE-C with core pulling outer mold” usually refers to a specific mold design strategy used in the injection molding of USB Type‑C connectors or related plastic parts, where outer mold components incorporate core‑pulling mechanisms to form complex undercuts, side holes, and fine structural details.

In the production of modern connectors, the USB Type‑C interface has strict dimensional tolerances and detailed structural features. These features include small bosses, slots, snap fits, and thin walls that must be formed accurately and repeatedly. Traditional two‑plate or three‑plate molds may not be sufficient to form all of these features without additional mechanisms. That is why the concept of TYPE-C with core pulling outer mold has gained attention: by integrating sliding cores and core‑pulling units into the outer mold, manufacturers can produce more complex shapes without compromising on strength or precision.

A key challenge in Type‑C connector molding is the limited space available for the plastic body and internal metal parts. The design must accommodate the terminal pins, metal shells, shielding structures, and sometimes over‑molding for strain relief, while still meeting external dimensional requirements. The TYPE-C with core pulling outer mold design helps to solve this by allowing side cores to move in and out to form side walls, undercuts, and small openings that would be impossible to demold with a simple straight‑pull mechanism. When the plastic solidifies, these side cores retract in a controlled way, releasing the connector component without causing damage.

From a process standpoint, the TYPE-C with core pulling outer mold system usually includes multiple components: fixed mold, moving mold, side sliders, inclined guide pins, hydraulic or mechanical core pullers, and sometimes lifters for complex undercuts. During the injection phase, the core‑pulling elements are locked in their forming position, sealing off the cavity and ensuring proper plastic flow. After cooling, the mold opens, and the core‑pulling system activates. This movement must be precisely timed to avoid deformation of the thin Type‑C structures, especially around the plug-in area and the mounting points that will later interface with printed circuit boards.

Dimensional accuracy is a further reason why TYPE-C with core pulling outer mold design must be carefully engineered. USB Type‑C connectors follow detailed interface specifications regarding plug dimensions, contact location, insertion force, and retention force. Even minor deviations in the molded housing can lead to poor fit, excessive wear, or contact failure over time. The outer mold with core‑pulling components must therefore be rigid enough to withstand injection pressure and must maintain alignment over many thousands or even millions of cycles. Any looseness in the outer mold sliders or core‑pulling pins could translate directly into unstable dimensions and high scrap rates.

Another aspect is the balance between mold complexity and production efficiency. A TYPE-C with core pulling outer mold is inherently more complex than a standard mold, which might increase manufacturing cost and setup time. However, by enabling the formation of all critical details in a single molding cycle, it can significantly reduce downstream processing such as secondary machining, manual trimming, or assembly of separate tiny plastic parts. For high‑volume production of Type‑C connectors, such an integrated approach often leads to lower overall cost per piece, despite the higher initial investment in mold design and fabrication.

Material selection also interacts with the design of a TYPE-C with core pulling outer mold. Connectors often use engineering plastics such as high‑temperature nylons, LCP (liquid crystal polymer), or other flame‑retardant materials that can withstand soldering temperatures and mechanical stresses. These materials may have high viscosity or specific shrinkage behavior, which must be considered when designing the outer mold and core‑pulling clearances. For instance, inadequate venting near core‑pulling areas can cause burn marks or incomplete filling, while incorrect shrinkage compensation can lead to misalignment of the critical Type‑C interface features.

In practice, simulation tools are frequently used when designing a TYPE-C with core pulling outer mold. Mold flow analysis can predict how plastic will fill the thin Type‑C housing, how the temperature will distribute across the cavity, and where weld lines might occur. Such analysis helps determine the best locations for gates, runners, and vents, as well as the stroke and locking forces needed for the core‑pulling components. In particular, thin sections around the Type‑C tongue or the insertion chamfers need careful flow balancing to avoid warpage or voids.

One notable advantage of a TYPE-C with core pulling outer mold is the ability to tailor the design to integrated over‑molding of metal parts. Many Type‑C connectors incorporate stamped and formed metal shells, which are placed into the mold and then encapsulated or partially over‑molded with plastic. This requires extremely accurate positioning of the insert parts and reliable sealing between metal and cavity surfaces. The core‑pulling outer mold can help form snap‑fit features or additional insulating barriers around these metal inserts, ensuring that the final product meets both mechanical robustness and electrical insulation requirements.

Reliability and service life of the mold itself are also key topics. The sliding surfaces in a TYPE-C with core pulling outer mold are subject to wear, especially under high cycle counts. To mitigate this, mold designers will specify hardened tool steels, surface treatments such as nitriding or PVD coatings, and lubrication channels to minimize friction. Proper guide structures and clearances are essential so that side cores move smoothly and return accurately to their forming positions. Poorly designed core‑pulling systems may suffer from galling, misalignment, or even breakage, which would lead to production downtime and inconsistent connector quality.

Cycle time optimization is another area where the TYPE-C with core pulling outer mold concept comes into focus. Since the side cores must move during each cycle, their motion speed and distance directly influence the overall molding cycle. Designers aim to synchronize core‑pulling actions with mold opening and ejection stages to avoid unnecessary delays. With careful design, the contribution of core‑pulling to total cycle time can be minimized, making the production of Type‑C connectors highly efficient, even with complex geometry requirements.

Quality control strategies must also adapt to the unique characteristics of TYPE-C with core pulling outer mold production. Inspection may include dimensional measurement of critical Type‑C interface points, visual inspection of flash around core‑pulled features, and functional testing such as insertion/withdrawal force measurements. If issues are detected, troubleshooting often starts with examining the core‑pulling components: checking for wear, contamination, or incorrect stroke length. Because these parts define many of the connector’s key features, even small deviations in the outer mold core‑pulling mechanism can have noticeable effects on product performance.

From a design‑for‑manufacturability standpoint, engineers working on Type‑C connectors must be aware of the limitations and possibilities of the TYPE-C with core pulling outer mold approach. While it enables complex structures, it is not without trade‑offs. Features that require very long, thin cores or extremely deep undercuts may still pose risks to mold life and product yield. Designers often simplify geometries where possible, enlarging draft angles or adjusting wall thickness to reduce stress on the core‑pulling elements. Collaboration between product designers and mold engineers is especially important to ensure that the final Type‑C connector design is both functional and manufacturable at scale.

Environmental and regulatory requirements also impact the design choices related to TYPE-C with core pulling outer mold systems. Connectors often must comply with halogen‑free, RoHS, and other safety standards. These requirements affect the choice of plastic materials, flame‑retardant additives, and plating finishes on metal parts. The mold must be compatible with these materials and designed to avoid dead corners where residues may accumulate. In addition, any lubricants used in the core‑pulling system must be selected carefully to prevent contamination of the molded Type‑C components.

Looking ahead, as data rates and power delivery capabilities of Type‑C interfaces continue to increase, mechanical robustness and thermal performance of connectors will become even more demanding. The TYPE-C with core pulling outer mold concept is likely to evolve further with more precise actuation methods, such as servo‑driven core‑pulling, integrated sensors, and real‑time monitoring. These advancements can improve dimensional stability and prolong mold life, while supporting the production of next‑generation connectors that integrate additional features such as locking mechanisms, multiple rows of terminals, or enhanced shielding structures.

In summary, TYPE-C with core pulling outer mold technology represents a specialized but crucial approach in the molding of USB Type‑C connector housings and related plastic components. By integrating core‑pulling mechanisms into the outer mold design, manufacturers are able to form intricate details, control tight tolerances, and ensure consistent quality across high‑volume production. Considerations such as mold rigidity, material behavior, wear resistance, cycle time, and inspection all play an important role in making this technology reliable and economically viable. As electronic devices continue to demand more from their connectors, the importance of well‑engineered TYPE-C with core pulling outer mold solutions will only continue to grow.
